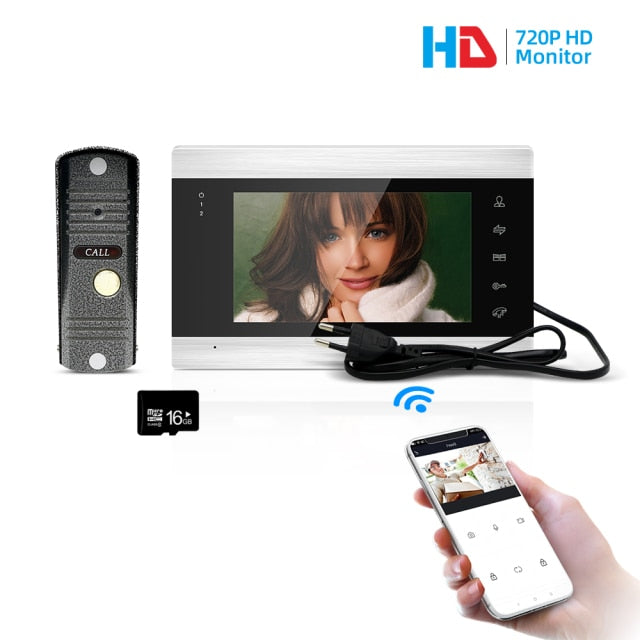

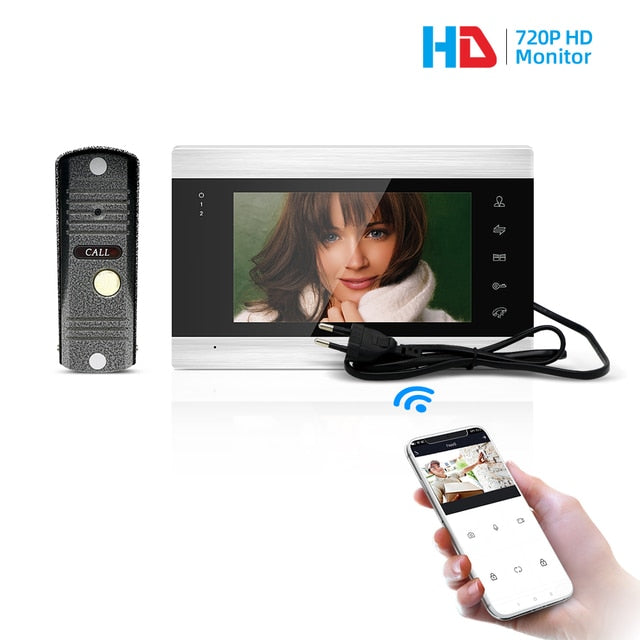

♦ 7 inch LCD HD screen, resolution is1024*600, this kit come with 720P/1.0MP HD outdoor camera. More clearer viewing.
♦ Customize ringtone and wallpaper.
♦ Point to point transfer call to any indoor monitor.
♦ Support play HD movie by indoor monitor.
♦ Maximum support connect with 2 outdoor call panels + analog 2 cameras + 6 monitors in one system.
♦ Compatible with most models of CVBS or AHD doorbell, max 960P/1.3MP doorbell and camera input.
♦ Unlock door function.
♦ Motion detection without extra device (controlled by software).
♦ Call Panel and monitor volume could be adjusted.
♦ IR LED supply you clear night vision.
♦ Support Tuya smart / Smart Life APP remote control the door, view and record.
Never Miss a Visitor
This IP video door phone system lets you answer your door by smartphone from anywhere.
When somebody call at outdoor, your monitor and smartphone will ring at the same time.
Multi-languages OSD Menu
The System Supports twelve Different Languages: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German and simplified Chinese.
Clock & Date Mode
The latest software is the monitor standby time.If you not operated the monitor for 1 minute and the time will not displayed at the monitor. it can protect the life of the screen.
Handsfree Dual-way Intercom
Communication between indoor monitor and outdoor camera is supported. Let you know easily what the visitor is talking about.
Video or Picture Record, SD Card Supported (Not Included)
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.
If you want intercom with additional camera, please click the photo to choose other link.
Motion Detection Function
Its working principle is based on graphics changes , so others camera or doorbell connect with 86706 can "share" this function.
If you open the Motion Detection Function, it will record the video or snapshots Automatically, and you can see what happen on your monitor, Which will keep your house more Safe.
Tuya Smart APP Connection Method
There has two Application that we can use, one is Tuya Smart, another is Smart Life. After you connect the monitor to your phone, you can unlock and monitor the door anytime and anywhere.
Doorbell Camera:
* Camera sensor: 1/4 CMOS,720P
* 110°wide angle camera
* Anti-oxidation aluminium alloy panel
* Simple 4-wire connection
* IR LED illumination for better night vision
* Keypad with blue LED backlight for night operation
* Rainproof,Dustproof,and Anti-vandal

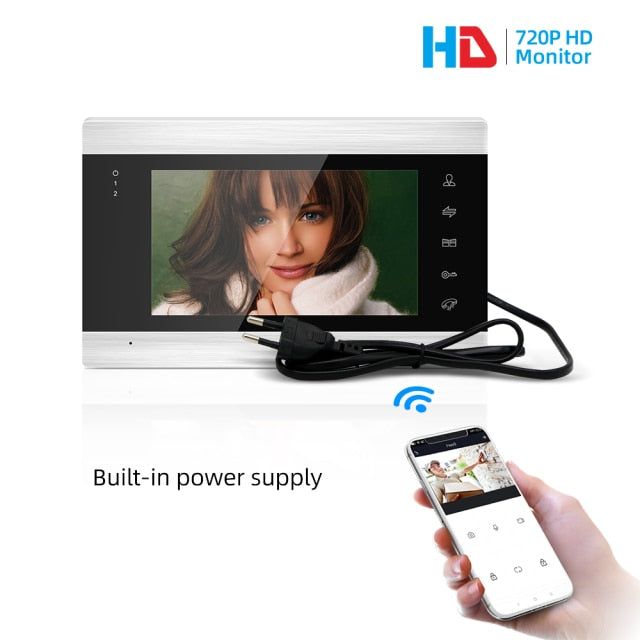

Monitor:
* Display:7" TFT LCD(16:9),1024(H)x600(V)
* Unlock: Monitor,smartphone and tablet unlock
* Memory: Micro SD Card (not include,32GB max.)
* Network: WIFI/RJ45 port
* Power Supply:Built-in(AC 100~240V),DC12V
* Multiple Intercom:Up to 4 monitors
* Multiple Doorbell:Up to 2 doorbells
* Ringtone:16 ringtones optional
* Made Of Acrylic wire drawing panel and TFT display
* Installation: Surface mount(Wall mount)
IP65 Waterproof, Anti-thunderstorm Design
The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.There are two installation methods, choose what you want.
720P/1.0MP High Resolution Camera With IR Leds, View More Clearly.
720P High Resolution HD CMOS, See Sharper And More Details Than CVBS 800TVL or 1200TVL cameras. With IR leds, you can see clear picture even at night without lights.
System Connection Wiring Diagram
Maximum support connect with 2 outdoor call panels + analog 2 cameras(or PIR detectors) + 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).
Package
